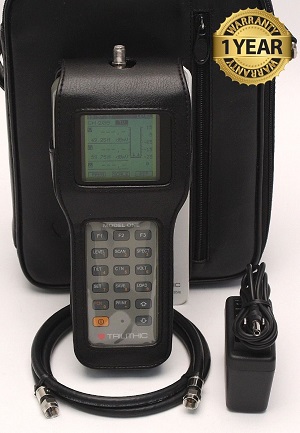

Trilithic Model One Signal Level CATV Meter

Description

MHz Standard Frequency Coverage
Full Scan, Single Channel And Spectrum Modes
Data Logging
High-Resolution Display
Rugged, Simple To Use, Cost-Effective
The Model One Signal Level Meter sets new standards for functionality and cost effectiveness, offering features previously available only in meters costing much more. Amplitude measurements are fast and efficient, with carrier amplitudes displayed singly, as a group of up to eight “favorites,” or as a full-span display. The Model One also features a single-channel Spectrum Mode, which displays not only the carrier amplitudes but also the presence of any interfering beats. This signal level meter features direct power measurement of QAM signals, carrier-to-noise measurements, Data Logging and many other features at an unmatched price.
The Model One is the ideal meter for HFC installations: durable, full-featured and simple to use in a wide range of conditions. The tough plastic shell and the protective vinyl glove supplied with every meter make the Model One highly resistant to damage from shock and impact. When not in use, the Model One and all its accessories can be zipped into the included padded vinyl carrying case.
The Model One is as convenient to use as it is rugged. Weighing only 1.5 pounds, it is light enough to be carried and operated with one hand. Operation is straightforward and intuitive, with all measurement functions accessible by a single keystroke. A combination of dedicated function keys and “softkeys” makes all setup functions accessible with minimum button-pushing.
Level Measurements
The Model One can display single channels, “favorite” groups of channels, or all channel amplitudes at the press of a key. The channel plans used by these modes can be configured from the front panel or downloaded from a PC.
