Description

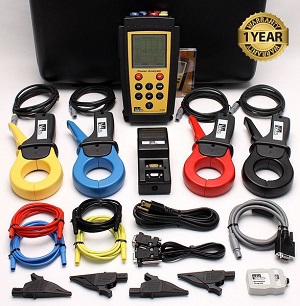

IDEAL 61-806 Power Quality Analyzer
The IDEAL Power Analyzer. The most versatile and easy-to-use power quality test instrument on the market. Four programs measure and analyze power quality on both singleand three-phase electrical systems. Instantaneous readouts including tables, bar graphs and even individual waveforms make job site data interpretation easy. With a real-time clock and 1 MB of memory, the Power Analyzer stores data that can be downloaded to a personal computer for in-depth analysis using PowerVisionﾙ Software.
The Energy and Harmonics Program comes standard with the IDEAL Power Analyzer. Disturbances, Check-Meter and Fast-Check Programs are available separately. These programs allow the user to monitor additional facets of power quality with a single test instrument. The details of each program are discussed on the opposite page.
Everything a professional needs for monitoring and analysis in a single unit. Rugged, versatile and loaded with features including computer compatibility. There have always been test instruments that help make the job easier, but the IDEAL Power Analyzer has taken power quality analysis to a new level.
Features:
Single- or three-phase measurements
True RMS
Data logging (1MB memory)
Auto ranging
Min/max/avg
Energy and Harmonics Program
Lightweight, portable design
Easy-to-use push-button operation
Password protected on-screen setup
160 x 160 pixel LCD
RS-232 interface
Customized data collection
Real-time clock
Programmable trigger-points and start/stop time
Auto display shutoff
Rechargeable Ni-Cad battery
Intelligent battery charging system
