Description
Features

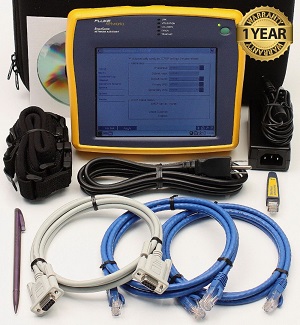

EtherScope Network Assistant provides crucial performance metrics about your wired and wireless LANs. The instrument’s autotest feature quickly verifies performance at the physical layer, discovers networks and devices, and identifies configuration and performance problems. For in-depth analysis, the instrument also includes a group of diagnostic tools to enable you to locate devices on your network and verify inter-connectivity.
The instrument’s user interface, which is presented on a color, touch-sensitive screen, is straightforward and intuitive. Simply by tapping a screen button, a navigation icon, or other on-screen element, you can “drill down” and obtain more detailed information or perform a specific operation.
Specifications
Battery Life:
Wired LAN mode: aprox. 4 hours.
Wireless LAN mode: approx 3.5 hours.
Communication and accessory ports:
1 USB
1 PCMCIA/Cardbus (PC Card Type II)
1 CompactFlash Memory Card
1 DB-9 Serial
Headphone Jack
Network Analysis Port:
RJ-45 10/100/1000 Base-T Ethernet (EtherScope LAN/Pro)
PCMCIA/Cardbus 802.11a/b/g Wireless (EtherScope WLAN/Pro)
Cable Types:
Unshielded Twisted Pair LAN Cables (100 UTP Category 3,4,5,5e,and 6 ISO/IEC Class C and D)
Foil-screened Twisted Pair Cables (100 and 120 Ohm ScTP category 3,4,5 and 6 ISO/IEC Class C and D)
Cable Length:
Open, shorted, or with wiremap adapter- 1 to 305 m (3 to 1000 ft)
Terminated with less than 20% reflection- 1 to 305 m (3 to 1000 ft)
Recieve Level: 100 to 5000mVp-p
Datalink Signal: 500mVp-p to 4000mVp-p
Fault Tolerance: 100 volts
