Description

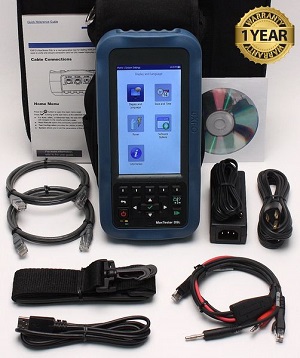

EXFO MAX-630-A2XA MaxTester DSL
A2XA = ADSL2+ Annex A Support
Fast, easy-to-use and cost-effective solution for installing FTTx services over DSL
KEY FEATURES AND BENEFITS
Ethernet testing for qualifying FTTx service at the customer premises
Configurable pass/fail results for automated testing
Rugged and weatherproof handheld unit designedfor the outside plant
A NEXT-GENERATION TOOL FOR BROADBAND DEPLOYMENT
EXFO’s MaxTester DSL is the perfect tool for any service provider deploying ADSL2+ services. It has been designed to stand up to the challenges of the outside plant environment. Its small form factor, rugged design and easy-to-use menu system are ideal for installation technicians. It makes the test process highly automated, and allows users to close their jobs quickly and efficiently. Its large display makes it even more user-friendly, and when it comes to saving results, the MaxTester DSL gives the user many connectivity options for uploading tests and compiling reports.
TEST TRADITIONAL ADSL AND NEWLY DEPLOYED VDSL2
MaxTester DSL is based on the industry-leading Broadcom chipset, which ensures excellent interoperability for ADSL2+ when testing against other Broadcom-based devices and other vendors’ chipsets. It also allows the use of Broadcom’s ADSL2+ Nitro mode to negotiate with Broadcom-based DSLAMs in order to achieve data rates as high as 30 Mbit/s (depending on DSLAM setup, loop length, noise influences and circuit quality). Nitro™ is a proprietary Broadcom approach that increases the throughput on links by compressing the ADSL2+ ATM header, thus requiring fewer bits to be transmitted. Ensuring the highest quality triple-play services to customers is a must for service providers, but it is also quite a challenge with aging copper plant. One industry standard method that helps achieve this is the xDSL impulse noise protection (INP) parameter, which is particularly important when deploying IPTV services based ADSL2+. For example, INP helps reduce the amount of macro-blocking in an IPTV stream caused by short duration and intermittent impulse noise spikes. The MaxTester DSL has a complete implementation of the ITU-T INP standard for values rangin from 0 to 16.
