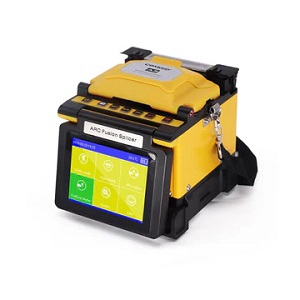

Best fusion splicer COMWAY C10S V2 core alignment fusion splicer

Description

COMWAY FUSION SPLICER C10S 2023 V2
Born for 5G Construction: Supports Splicing of Fiber G.654E
Multi-Function: Fiber Endface Melter & Fusion Splicer
Professional Backbone Machine: 6 Motors Core Alignment
Ultra High Precision: 750X Single Axis View (Zoom Up),with touch screen
More Efficiency: 5sec. Splicing Time, 8sec. Heating Time
Durable Design: Waterproof, Dust-Proof, Anti-Shock
Anti-Theft & Security: Remote Locker & GPS (Option)

Specifications
Size & Weight D170 x W135 x H149(mm); 2.0kg (2.5kg with battery)
Fiber Alignment 6 Motors Core Alignment
Fiber Type SM(ITU-T G.652), EB(ITU-T G.654), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice Mode Single fiber
Fiber Diameter Cladding dia. 80~150μm; Coating dia. 100~3000μm
Cleave Length 250μm cladding dia. 8~16mm; Over 250μm cladding dia. 16mm
Splicing Programs Max. 200
Splicing Time 5 Sec. [SM Fast] program; 10 Sec. [SM G652] program
Heating Programs Max. 30
Heating Time Adjustable, 8 Sec. with micro sleeves 12 Sec. with slim 60mm and 40mm sleeves
Splice Progector 10~60mm
Splice Image Capture Max. 800
Splice Data Storage Max. 20000
Splice Loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB
Regurn Loss 60dB
Loss Estimation Yes
Operation Condition Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10~+50ºC; Wind velocity: up to 15m/s
Storage Condition Humidity: 0~95%; Temperature: -40~+80ºC (battery -20~+40ºC)
Tension 1.96~2.25N
Screen 5 inch touch screen
Fiber Magnification X/Y: 750X(Zoom Up); X&Y: 300X
Port High speed USB
Electrode life 5000 ARC discharges
Power supply AC100-240V, 50/60Hz
Battery Parameters 8400mAh high capacity battery, over 350 circles splicing and heating
