Description

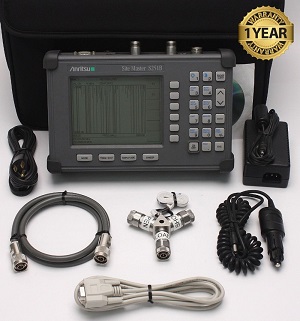

The Site Master S251B is a broadband two-port transmission line and antenna analyzer that performs return loss (SWR), cable loss and distance-to-fault measurement for cellular, PCS/GSM and ISM market applications.
Site Masterﾒs patented high RF interference rejection enables the S251B to accurately measure cable and antenna systems in the presence of high RF activity. In addition, the high dynamic range (>80 dB) enables the S251B to perform antenna-to-antenna isolation measurements.
Selectable output levels of +6 dBm or ﾖ30 dBm and optional built-in Bias Tee provide the S251B with a convenient means of verifying Tower Mounted Amplifier (TMA) gain before and after installation. Status of applied voltage and current load indicate the operation and function of the TMA.
The Site Master Software Tools supplied with each S251B operates with Windows 95, Windows 98, and Windows NT. Software Tools can download traces and cable parameters to S251B via the RS-232 serial port.
FEATURES
Accurately Tests Return Loss/SWR in Transmission Line and Antenna Systems
High Immunity to Live Site RF Interference
Extended Distance-to-Fault Range
10 User Configurations include Calibrations
Increase Current Capability (to 240 mA) with Built-in-Bias Tee
Gain/Insertion Measurement
RF Source 625 to 2500 MHz at 10 kHz steps
Trace Storage with Date/Time Stamp, Alphanumeric labeling (up to 200 memory locations)
Trace and Cable Parameters Downloadable to Site Master
Trace Overlay, Trace Math
Large VGA Display (640 x 480)
Display Resolution Settings: 130, 259, 517 data points
5-Segment Limit Line
Printer Driver Compatibility with Epson, Canon, Citizen, and HP
Field Replaceable Battery-NiMH
